Vent-Axia Silhouette 100T Axial Bathroom, Kitchen and Toilet Fan (454056A)

SKU: 454056

Was: £44.95 £43.95 incl. VAT excl. VAT
Buy more, save more!
Quantity Price Saving Per Item
10+ £43.08 Save 2%
20+ £42.20 Save 4%
30+ £41.32 Save 6%
  • 17mm stylish ultra low profile grille
  • Downstream airflow guide vanes for improved pressure development
  • Designed for vertical or horizontal application
  • Suitable for wall, ceiling, panel and window mounting
  • Meets current Building Regulations Approved Document F

Quantity

46 in stock

Need more than 46?

You may also need

f_252F6_252Fd_252F4_252Ff6d4c8a3d6b1d5fec6d7e7a3b333c2d97b16fedd_wall_kit_white_0_0.jpg

Vent-Axia Wall Kit White for 100mm Fans - 254102

Was: £24.95 £19.95 incl. VAT excl. VAT

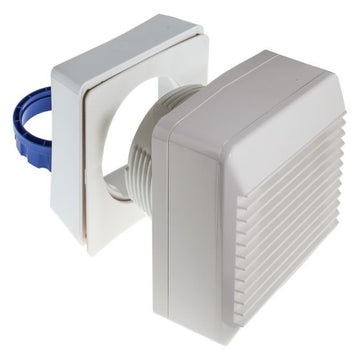

Vent-Axia Easy Fix 100mm Window Fitting Kit for Centra, Silent Fan and the Silhouette 100 - 442947

Was: £32.25 £30.75 incl. VAT excl. VAT
2_252F8_252F5_252Fb_252F285b73d7e5657e8bf4e9fc75f75590c5c862c75e_wall_kit_brown_0_16fbe294-b56b-4a73-9afc-876bd5092e49.jpg

Vent-Axia 100mm Brown Wall Fitting Kit - 254100

£22.95 incl. VAT excl. VAT
c_252F9_252Fe_252F5_252Fc9e58c9e86745bdee34d0a7bb45a666d1b3345ba_CMA020__1__599_0bb316c5-cf79-4460-b5ae-a7105a231b88.png

Click Scolmore Mode 20A 3-Pole Fan Isolation Rocker Switch Polar White - CMA020

£2.95 incl. VAT excl. VAT
Product Information

Vent-Axia Silhouette 100T Axial Bathroom, Kitchen, and Toilet Fan - 454056

Safety Extra Low Voltage (SELV) is designed for areas where a fan has to be fitted within zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations. The Silhouette SELV model can be safely installed within the spray area. SELV models are rated IPX7, control is by a mains safety isolating transformer with 12V AC SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.

The Vent-Axia SILHOUETTE 100T Extractor Fan is a 100mm bathroom/toilet fan with an integral adjustable electronic overrun timer (up to 30 mins), neon running light that operates a manual override only, and backdraught shutter.

The Silhouette range is designed for modern living. With a slim profile of only 17mm, Silhouette blends in with the wall surface to provide an unobtrusive installation. Silhouette can be ceiling/panel mounted and connected to an appropriate duct run to the outside.

A slim profile of only 17mm, Silhouette blends in with the wall surface to provide an unobtrusive installation. Silhouette has an FID performance of 21 l/s. Silhouette can be ceiling/panel mounted and connected to an appropriate duct run to the outside.

Features:

  • 17mm stylish ultra-low profile grille
  • Downstream airflow guide vanes for improved pressure development
  • Designed for vertical or horizontal application
  • Indication light
  • Fan IPX4 rated
  • Suitable for wall, ceiling, panel, and window mounting
  • Meets current Building Regulations Approved Document F

Specification

  • Wattage: 14
  • IP Rating: IP44
  • Width: 160
  • Height: 160
  • Manufacturer Code: 454056
  • Barcode: 5015135494506
Delivery Information

Free Delivery on All Orders Over £50.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland.

For more information, please see our Delivery details.

Details

Applicable Area

Home

Collection Name

Silhouette

Domestic/Commercial

Domestic

Duct Diameter

105mm

Extraction Rate

26L/s

Extractor Fan Type

Axial

Fan Diameter

4 Inch

Finish/Colour

White

GTIN (Barcode)

5015135494506

IP Rating

IPX4

MPN

454056

Mounting Options

Ceiling

Number of Speeds

1

Power Consumption

15W

Timer

Yes

Voltage

240V

Dimensions

Depth

170mm

Height

160mm

Weight

0.01kg

Width

170mm
