Manrose 120mm (5) Axial Extractor Fan with Timer & Pullcord - XF120TP

SKU: XF120TP

£52.95 incl. VAT excl. VAT
Buy more, save more!
Quantity Price Saving Per Item
10+ £51.90 Save 2%
20+ £50.84 Save 4%
30+ £49.78 Save 6%
  • Quiet in operation and easy to install
  • 120mm/5inch extractor fan
  • Designed for larger bathrooms and toilets
  • Suitable for wall, ceiling, or window mounting

Quantity

1 In Stock

Need more than 1?

You may also need

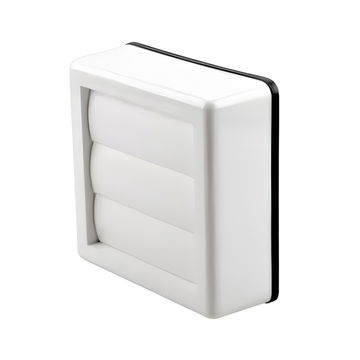

Manrose Window Vent Kit For XF120 Range (Includes Backdraught Shutters) - 1267

Manrose Window Vent Kit For XF120 Range (Includes Backdraught Shutters) - 1267

Was: £14.93 £9.95 incl. VAT excl. VAT
Manrose 120mm/5 Wall Vent Kit For XF120 Fans  - 1280

Manrose 120mm/5 Wall Vent Kit For XF120 Fans - 1280

£15.95 incl. VAT excl. VAT

Details

Airflow m³/h

130m³/h

Applicable Area

Bathroom, Kitchen, Laundry Room, Toilet

Extraction Rate

36L/s

Extractor Fan Type

Axial

Fan Diameter

5 Inch

Finish/Colour

White

GTIN (Barcode)

5020953550242

IP Rating

IP24

Installation Kit

Yes

MPN

XF120TP

Min Voltage

220V

Mounting Options

Wall

Number of Speeds

1

Power Consumption

15.5W

Pull Cord

Yes

SELV (Low Voltage)

Yes

Timer

Yes

Voltage

240V

Dimensions

Height

182mm

Lip Depth

32mm

Weight

0.75kg

Width

182mm

Product Information

The Manrose 120mm Extractor Fan is designed for larger bathrooms, toilets, cloakrooms and medium sized rooms, the 120mm (5") series of fans are 56% more powerful than their 100mm (4") counterparts, yet only 10% larger in surface area. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations. A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted. The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor. XF120 Series is designed for wall or ceiling mounting, (pullcord wall-mounting only).

  • Single phase consuming 15.5 Watts
  • Designed for wall, ceiling or window mounting, the efficient range of axial flow extractor fans are available in eleven options
  • Quiet in operation, easy to install and possess the latest design technology
  • The extract rate is 130m3/hr, 36 litres per second
  • Power is provided by a single phase induction motor with pre-oiled bearings fitted for a long, maintenance free life
  • Manufactured using high gloss ABS thermoplastics for strength, durability, aesthetics and easy cleaning
  • The 120mm (5") series complies with the Building Regulations on Ventilation (F1)
  • Mounting: Wall
  • Noise: 41.0 dB(A)
  • Pull Cord: Yes
  • Hole Size: 5"
  • Type of Extractor: Axial
  • Number of Speeds: 1
  • Maximum pressure: 35 p.a.
  • Fan speed: 2000 r.p.m.
  • Maximum operating temperature: 40ºC
  • Dimensions: Height: 182mm x Width: 182mm x Depth: 78mm


Criteria

  • Application: Bathroom
  • Wattage: 15.5
  • Voltage: 220-240V - AC. 50Hz
  • Width: 182
  • Height: 182
  • Colour: White
  • Manufacturer Code: XF120TP
