ESP MagDuo 2 Zone 2 Wire Fire Panel - MAGDUO2

MAGFIRE MAGDOU2 2 Zone 2 Wire Fire Panel

ESPMAGDUO is the New Range Of Two-Wire Fire Systems. Unlike standard conventional 4 wired systems where the sounders and detectors are wired on separate circuits, MAGDUO utilises intelligent 2-Wire technology enabling all devices on the same pairs of wires.

This advanced technology can reduce installation and material cost.

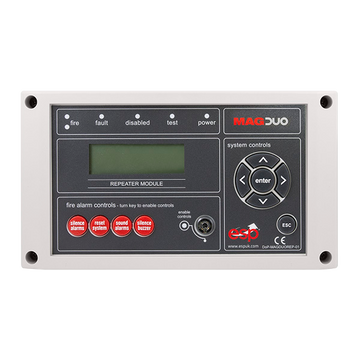

The system is Two-Wire meaning that all system devices can be installed on the same circuitUp to 32 devices per zone* (Dependent on Device Loading Unit: DLU, please refer to product technical specification)MAGDUO will support 2-8 Zone applicationsThe MAGDUO FlexiPoint detectors are changeable from smoke to heat detection mode using the dip switch settings with 7 different optionsFlexiPoint detectors are also available with inbuilt sounder & strobe optionsThe 4 and 8 zone panels support up to 8 repeater panels

Technical Information:

Two-Wire fire alarm systemActive end of line monitoring and head removalUp to 32 devices per zone*4 line x 20 character LCD displayAbility to differentiate between smoke detector, heat detector or a manual call point alarmsAlarm confirmation featureEvent log storing up to 500 events3 enhanced test modesZone can be configured to day/night detection modeDelay programming optionsOptional extended battery box with capacity for 2 x 12V 7.0Ah batteriesCertified to EN54 2/4 Standards
