Vent-Axia Lo-Carbon Quadra Tm - 439253

SKU: 439253

Was: £394.95 £339.95 incl. VAT excl. VAT
  • Ideal for Bathrooms, Kitchens, Laundry Room, and Toilets
  • Meets current Building Regulations Approved Document F & L for intermittent or continuous use
  • Innovative display showing calibrated airflow and system pressure
  • Multi-orientation grille can be rotated by 90/180 degrees
  • Continuous running dMEV fan with unique constant volume technology

Quantity

You may also need

f_252F6_252Fd_252F4_252Ff6d4c8a3d6b1d5fec6d7e7a3b333c2d97b16fedd_wall_kit_white_0_0.jpg

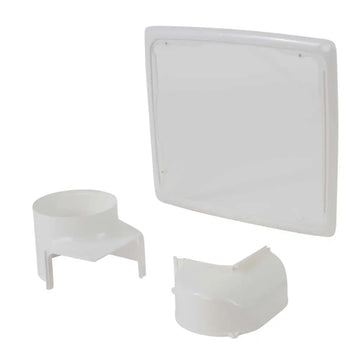

Vent-Axia Wall Kit White for 100mm Fans - 254102

Was: £24.95 £19.95 incl. VAT excl. VAT

Vent Axia Filter for Centrif Duo Range 439927

£9.65 incl. VAT excl. VAT

Vent-Axia Quadra Flush Mount Kit - 439256

Was: £28.95 £21.95 incl. VAT excl. VAT
2_252F8_252F5_252Fb_252F285b73d7e5657e8bf4e9fc75f75590c5c862c75e_wall_kit_brown_0_16fbe294-b56b-4a73-9afc-876bd5092e49.jpg

Vent-Axia 100mm Brown Wall Fitting Kit - 254100

£22.95 incl. VAT excl. VAT
Product Information

The Vent-Axia Lo-Carbon Quadra has dual speed, continuous running or intermittent to high speed. High speed via integral PIR sensor or switch live (both with overrun timer).

The Lo-Carbon Quadra offers a single fan suitable for surface or flush mounting. Low speed selectable between 6, 9 and 12l/s and high between 15, 30 and 60l/s all with through the wall or two ducted selections to ensure installed performance is met.

The Lo-Carbon Quadra SELV has been designed to meet building requirements where there is a need to fit in Zone 1 containing a fixed bath or shower according to IEE wiring regulations. The Lo-Carbon Quadra SELV can be safely installed within the spray area with the 24VDC Safety Isolating Power Supply situated away from the spray zone and out of reach of the person using the facility.

With discrete aesthetics and low noise levels due to an accurately balanced impeller, it is also one of the most unobtrusive centrifugal kitchen fans available. The front cover design also provides no area for dirt to build-up, so it stays looking cleaner for longer.

Delivery Information

Free Delivery on All Orders Over £50.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland.

For more information, please see our Delivery details.

Details

Applicable Area

Bathroom, Kitchen, Laundry Room, Toilet

Collection Name

Lo-Carbon Quadra

Duct Diameter

100mm

Extractor Fan Type

Centrifugal

Fan Diameter

4 Inch

Finish/Colour

White

GTIN (Barcode)

5015135035785

Humidistat

Yes

IP Rating

IPX4

MPN

439253

Max Airflow

227m³/h

Min Voltage

220V

Mounting Options

Ceiling, Panel, Wall

Max Noise Level

50dB

Number of Speeds

2

PIR Fitted

Yes

Power Consumption

38W

Pull Cord

Yes

Voltage

240V

Dimensions

Depth

270mm

Diameter

100mm

Height

246mm

Width

270mm
