Vent-Axia Acm 125T Mixed Flow Fan Erp Version - 17105020

SKU: 17105020

Was: £147.95 £135.50 incl. VAT excl. VAT
Buy more, save more!
Quantity Price Saving Per Item
10+ £132.79 Save 2%
20+ £130.08 Save 4%
30+ £127.37 Save 6%
Order in the next 3 Hours, 36 Minutes for next working day delivery
  • Aesthetically pleasing with wipe clean polymer
  • Two speed selectable motor
  • Designed to meet IP44
  • Simple Installation
  • Optimise fan performance by using an approved Vent

Quantity

1 in stock

Need more than 1?
Order in the next 3 Hours, 36 Minutes for next working day delivery

You may also need

2_252F4_252F9_252F6_252F24965cab46839fe498a8f3a0e58142200a2f08d6_W300310_d26969d7-7a9f-455e-8e1e-be152c297df3.jpg

Vent-Axia 1.5A Extractor Fan With Electronic Speed Controller - W300310

Was: £119.75 £115.95 incl. VAT excl. VAT
1_252Fe_252Fd_252F9_252F1ed95ee9460d63b15d342fa0d62ada4cee649273_2100__2120__2150_Range.jpg

Manrose 125mm Internal Circular Grille (White) - 2120W

Was: £13.95 £12.95 incl. VAT excl. VAT
f_252F9_252F5_252Fc_252Ff95c6a6bd8b182c49d0e524f8331607001c11671_1250__1251__1260__1259_Range.jpg

Manrose 120mm/5 Internal Round Circular Air Diffuser With Round Spigot And Adjustable Central Disc - 1251

£14.95 incl. VAT excl. VAT
d_252F9_252Fa_252F8_252Fd9a862f4d4740b47945e7eccd42ee45841e4c6b4_3761__3763__3766__37615__101025__1020__1021__1024__1025__1026__10410__10415__1023__10251__5753.jpg

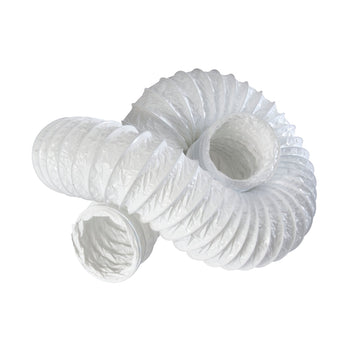

Manrose 125mm PVC Flexible Ducting (6M) - 5756

£15.45 incl. VAT excl. VAT
f_252Fa_252Fb_252Fc_252Ffabc5712c6ca48a144cbe6f191f1e2710e84e392_1100__1110__1120_Range_2731fbc9-fbfa-43fe-aaee-06e0bafc62a2.jpg

Manrose 60mm-165mm Flexible Ducting Hose Clamp - 1110

£1.95 incl. VAT excl. VAT
1_252Fc_252F1_252F6_252F1c16d41ad8d1166411eb2c88fda245d20f992ffa_1172_Range_b5e8be46-5c33-47a1-841f-01914e80502a.jpg

Manrose 125mm Fixed Louvre Grille (White) - 1172W

£4.50 incl. VAT excl. VAT
Product Information

The Vent-Axia ACM 125T MIXED FLOW FAN ERP VERSION is an energy efficient Mixed Flow In-Line fan, quieter than any other product on the market.

ACM is now in a range of six products in the range which have been designed for use with rigid and flexible ducting. In Line Mixed Flow fans offer two and half times the pressure of conventional axial fans, are dimensionally more compact making them ideal for many ducted applications.

The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution.

The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.


Technical Specifications
  • Length: 259mm
  • Colour: White
  • Voltage: 220-240
  • IP Rating: IP44
  • Diameter: 178mm
  • Power Consumption: 30
  • Noise Level: 25
  • Pull Cord: Yes
  • Hole size: 120+153.5
  • Number Of Speeds: 3
  • Maximum Input Current: 1.5

Features:
  • Three speed motor
  • Removable motor core assembly
  • Rotating motor chassis assembly
  • IP44 rated
  • Aesthetically pleasing with wipe clean polymer casing
  • Sound data from independent testing
  • Running speed selected on installation
Delivery Information

Free Delivery on All Orders Over £50.

This Excludes Delivery to the Scottish Highlands, Offshore Islands and Northern Ireland.

For more information, please see our Delivery details.

Details

Applicable Area

Bathroom, Commercial, Laundry Room, Office, Toilet, Warehouse

Extractor Fan Type

Inline

Fan Diameter

5 Inch

Finish/Colour

White

GTIN (Barcode)

5015135093983

IP Rating

IP44

MPN

17105020

Min Voltage

220V

Mounting Options

Ceiling

Max Noise Level

25dB

Number of Speeds

3

Power Consumption

30W

Pull Cord

Yes

Voltage

240V

Dimensions

Diameter

178mm

Length

259mm
